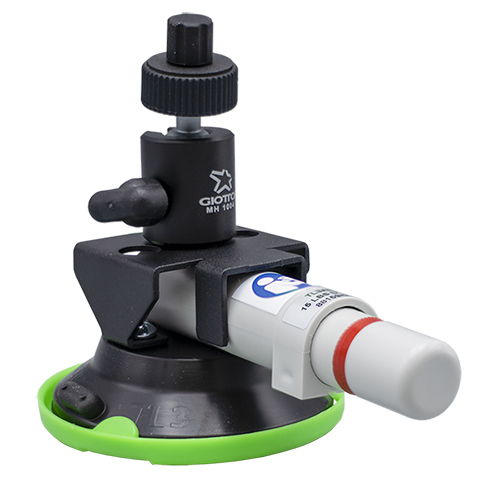

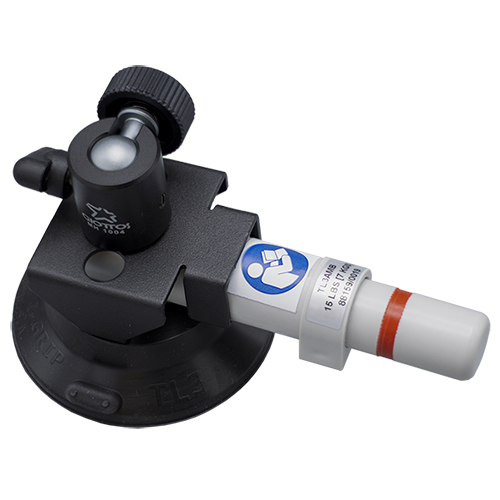

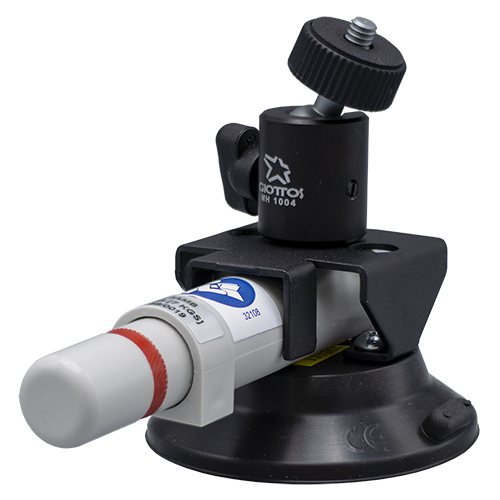

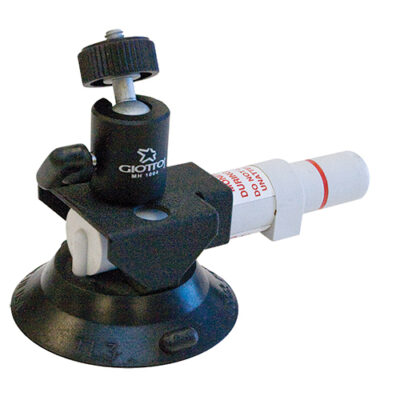

3" Mounting Cup w/ Camera Mount
Stock: 91158
Model: TL3PH1304-91158
Provides a reliable, temporary mounting point for cameras, without marking or damaging most surfaces.
- 360° Swivel Ball Joint w/ 1/4-20 stud
Details
Features & Benefits:
- Swiveling ball-joint allows camera positioning in any direction
- Maximum Load Capacity of cup w/out Camera Mount: 15 lbs [7 kg]
- Eliminates the need for drilling holes when mounting cameras
- Red-line indicator warns user of any significant vacuum loss
- Supplied with pad protector to prevent damage
Specifications
Instructions Download
Troubleshooting Download
Connection Point 3-D swivel-ball mount with 1/4-20 threaded stud
Ideal Uses Cameras and Video Cameras
Load Capacity Click Here
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 3” [8 cm]
Pad Model TL3
Rubber Type UV Resistant
Associated Parts
Stock#: 49323T
Model#: TL3
Model#: TL3
