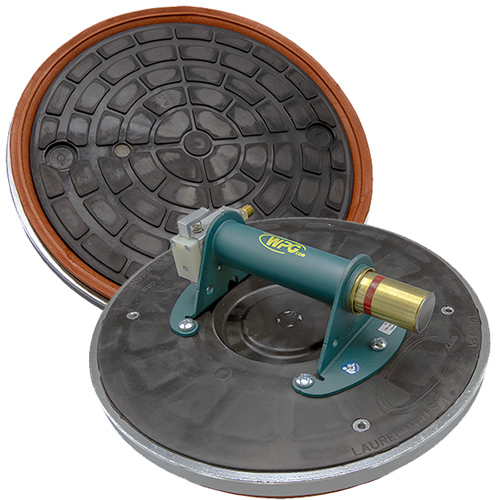

10"Air-Powered Hand Cup for Textured Surfaces

Stock: 91815

Model: N10TAIR

This metal-handle cup works with air compressors to generate vacuum and has a foam ring to lift many textured surface loads weighing up to 150 lbs [68 kg].

Request More Information Find a Dealer

Details

Features:

User-supplied air compressor generates vacuum cup's pump
Fast attach and release

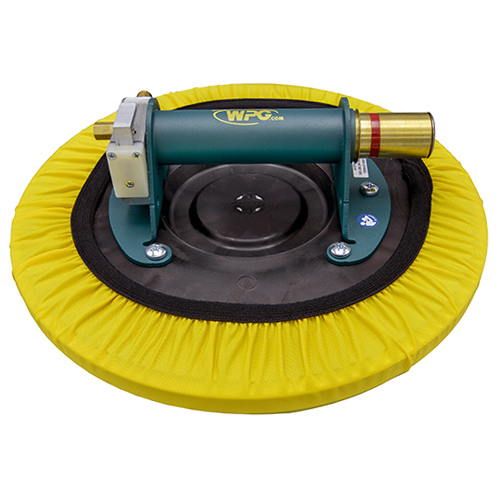

Supplied with protective carrying case
Red-line vacuum indicator shows when vacuum cup is ready to lift load

Specifications

Instructions Download

Specifications Download

Load Capacity 150 lbs [68 kg]

Surface Texture Textured, Irregular

Material Porosity Nonporous

Allowable Surface Curvature Flat

Material and Ambient Temperature Range 10° F [-12° C] — 120° F [49° C]

Pad Diameter 10" [25 cm]

Pad Model VPFS10T

Rubber Type Standard

Handle Type Metal

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
